λ‑Power — High‑Power Tunable Diode Laser
Laser head (image placeholder)
λ‑Power is a high‑power tunable diode laser optimized for spectroscopy and nonlinear optics. It features ASE‑free output, wide manual tuning (>50 nm), and mode‑hop‑free fine control via PZT (>60 GHz, 0.2 nm). Two standard wavelength bands are available: λ‑Power 970 (940–995 nm) and λ‑Power 1060 (1010–1075 nm).
Datasheet
Typical Output and Spectra

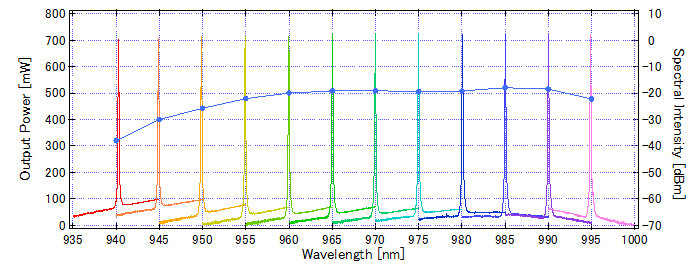

λ‑Power 970

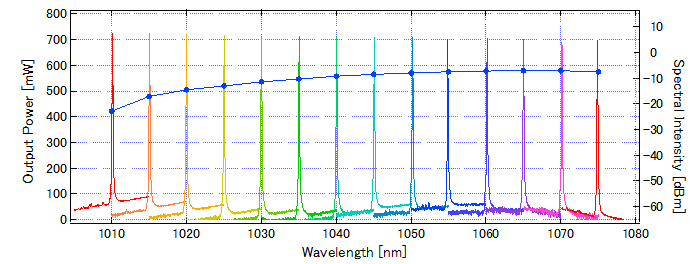

λ‑Power 1060
Specifications
| Model | Tuning Band | Max Output | Polarization | PZT Range | Linewidth | Fiber Output (Option) |
|---|---|---|---|---|---|---|
| λ‑Power 970 | 940–995 nm | >500 mW (free space) | Horizontal, PER > 20 dB | >60 GHz (~0.2 nm) | ~100 kHz @ 10 ms (free‑running) | PM fiber ~350 mW, FC/APC |
| λ‑Power 1060 | 1010–1075 nm | >500 mW (free space) | Horizontal, PER > 20 dB | >60 GHz (~0.2 nm) | ~100 kHz @ 10 ms (free‑running) | PM fiber ~350 mW, FC/APC |
Options
- Frequency locking: Etalon, FBG, gas absorption (PZT & current control)
- Second Harmonic Generation: 50 mW @ 488 nm / 530 nm
- Remote control: USB / LabVIEW (EXE and source)
Dimensions – Head: 100×120×180 mm (2 kg), Controller: 185×80×230 mm (2 kg)
