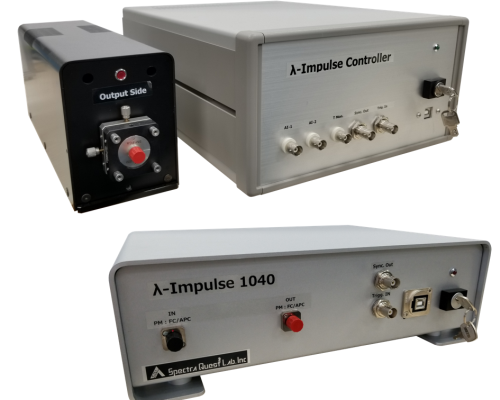

| λ-Impulse 広帯域半導体光増幅器 / Wide-Band Solid State Optical Amplifier |
||
|---|---|---|
| # | λ-Impulse 950 | λ-Impulse 1040 |
| Wavelength Tuning Range |
920nm-1000nm (30dB Gain) |
980nm-1085nm (30dB Gain) |
| Max. Peak Power |
> 1.5 W | |
| Extinction Ratio | > 85dB | |
| Pulse Width | 1 ns (50 ps option with Pulse Picker) | |
| Repetition Rate | single shot ~ 125 MHz Int./Ext. Trigger |
|
| Time Delay | Delay Range: 10 ns, Digital Setting Res. 10 ps with built-in Delay Unit |
|
| PM-Fiber Coupling |
80% (any wavelength, without Dispersion Compensation) 70% (whole wavelength, with Dispersion Compensation) |
|
Related Data
Time Profile
